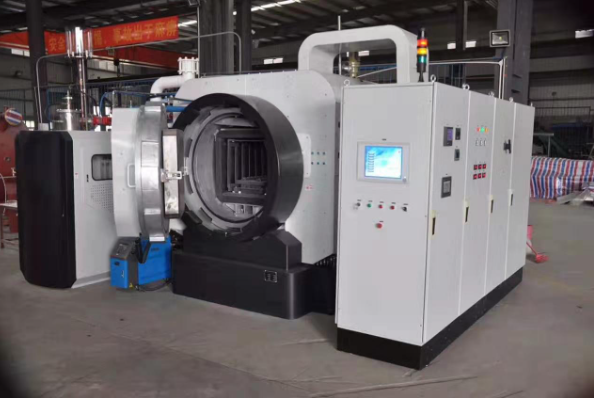

Industrial Vacuum Brazing Furnace Is Used For Brazing Metals Such As Iron, Aluminum, Copper, Stainless Steel, Etc

Name: Industrial Vacuum Brazing Furnace Is Used For Brazing Metals Such As Iron Aluminum Copper Stainless Steel Etc
Brand: Star Power
Price: 1 USD

Quality Industrial Vacuum Brazing Furnace Is Used For Brazing Metals Such As Iron, Aluminum, Copper, Stainless Steel, Etc wholesale

Brand Name : Star Power

Model Number : 360KW

Certification : CU,ISO

Place of Origin : Guangdong, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1 month

Packaging Details : metal frame with film

System : PLC

Voltage : 380V/220V Optional

Dimension(L*W*H) : 6500*4000*2000mm

Weight (T) : 8.5 T

Power (kw) : 350 kw

Contact Now

Heat treatment external processing manufacturer: How is the welding effect of vacuum brazing furnace
Heat treatment external processing manufacturer: Vacuum brazing furnace is a new brazing method under vacuum conditions without adding brazing flux. Due to the fact that brazing is carried out in a vacuum environment, it can effectively eliminate the adverse effects of air on the workpiece, thereby achieving flux free brazing. Mainly used for brazing difficult to brazing metals and alloys such as aluminum alloys, titanium alloys, high-temperature alloys, refractory alloys, ceramics, etc. The brazed joint is smooth and dense, with good mechanical properties and corrosion resistance. Vacuum brazing furnaces are generally not used for welding carbon steel and low-alloy steel needles.
Heat treatment external processing manufacturer: The vacuum brazing furnace technology equipment mainly consists of a vacuum brazing furnace and a vacuum management system, which are divided into two parts. There are roughly two different types of vacuum brazing furnaces: hot fireplace and cold fireplace. Two types of furnaces can be heated with natural gas or electric heating, and can be designed as side mounted furnaces, bottom mounted furnaces, or top mounted furnaces (kang type). Vacuum environment system analysis can be used as a universal approach. The main issues in the research of vacuum control systems include the use of vacuum processing units, vacuum pipelines, vacuum valves, etc. Vacuum unit personnel are usually composed of rotary vane mechanical pumps and oil diffusion pumps. Using a mechanical pump alone can only achieve a vacuum level significantly lower than 1.35 × 10-1Pa on its own. To achieve high vacuum, it is necessary to develop and use oil diffusion pumps simultaneously, which can achieve a vacuum degree of 1.35 × 10-4Pa. The pressure generated by the gas in the system is measured using a vacuum gauge.

Allocation list of the furnace body part

order number	Package number / item number description	Specifications and models	quantity	Manufacturer name
1	furnace body		1
2	trolley		1
3	Aluminum silicate fiber cotton	STD	1	Shanxi Baojie fire-resistant thermal insulation material
4	heating element	0Cr25Al5 resistance band, internal ceramic string sleeve fixed	1	Shanghai tree green
5	Furnace fan	3.0KW	4
6	Truck with force cycloidal motor	5.5KW	1
7	Went line motor with power of furnace door	3KW	1
8	Electric cabinet control box		1
9	pond		1

List of main accessories (wearing parts)

order number	ts	name	quantity	place of production
1	SCR-160	Tuning module	4 block
2	WRNK-130 Φ5mm	thermocouple	Four	Zhaoqing, Guangdong
3	AI518E3JO	Intelligent digital display power control temperature control table	One	Xiamen udian
